Product Summary

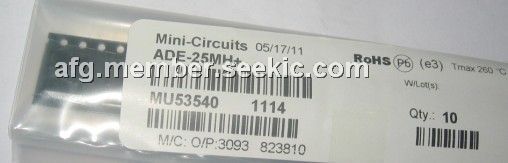

The ADE-25MH+ is a frequency mixer.

Parametrics

ADE-25MH+ absolute maximum ratings: (1)Operating Temperature: -40°C to 85°C; (2)Storage Temperature: -55°C to 100°C; (3)RF Power: 50mW; (4)IF Current: 40mA.

Features

ADE-25MH+ features: (1)excellent L-R isolation, 47 dB typ.; (2)low profi le package; (3)aqueous washable; (4)protected by U.S. Patent 6,133,525.

Diagrams

ADE-25MH+ pin connection
