Product Summary
The ADM1062ASUZ is a multisupply supervisor/sequencer with margining control and temperature monitoring. In addition to these functions the ADM1062ASUZ integrates a 12-bit ADC and six 8-bit voltage output DACs. The ADM1062ASUZ can be used to implement a closed loop margining system. This enables supply adjustment by altering either the feedback node or reference of a DC/DC Converter using the DAC outputs. The ADM1062ASUZ is controlled via configuration data which can programmed into an EEPROM. All of this configuration can be programmed using an intuitive GUI based software package provided by ADI. Applications are (1)central office systems; (2)servers/routers; (3)multivoltage system line cards; (4)DSP/FPGA supply sequencing; (5)in circuit testing of margined supplies.
Parametrics
ADM1062ASUZ absolute maximum ratings: (1)Voltage on VH Pin: 17 V; (2)Voltage on VP Pins: 7 V; (3)Voltage on Any Other Input: -0.3 V to +6.5 V; (4)Input Current at any pin: ±5 mA; (5)Package Input Current: ±20 mA; (6)Maximum Junction Temperature (TJmax): 150°C; (7)Storage Temperature Range: -65°C to +150°C; (8)Lead Temperature, Soldering Vapor Phase, 60 s: 215°C; (9)ESD Rating all pins: 2000 V.
Features
ADM1062ASUZ features: (1)6 voltage output 8-bit DACs (0.300 V to 1.551 V); (2)Internal temperature sensor; (3)Remote temperature sensor; (4)Open collector with external pull-up; (5)Push-pull output, driven to VDDCAP or VPn; (6)Open collector with weak pull-up to VDDCAP or VPn; (7)State changes conditional on input events; (8)Can enable complex control of boards; (9)Power up and power down sequence control; (10)Fault event handling; (11)Interrupt generation on warnings; (12)Watchdog function can be integrated in SE; (13)Program software control of sequencing through SMBus.

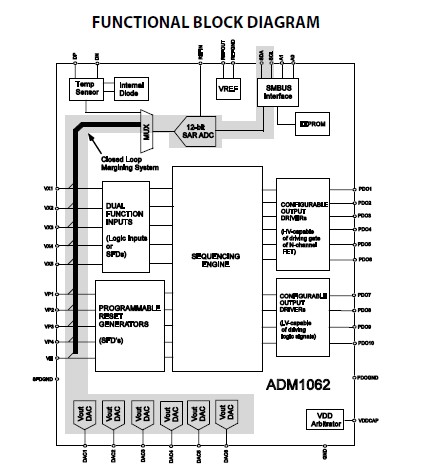

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADM1062ASUZ |
|
IC SUPERVISOR/SEQUENCER 48-TQFP |
Data Sheet |
|
|
||||||||||||||||
|
ADM1062ASUZ-REEL7 |
|
IC SEQUENCER/SUPERVISOR 48TQFP |
Data Sheet |
|
|
||||||||||||||||
