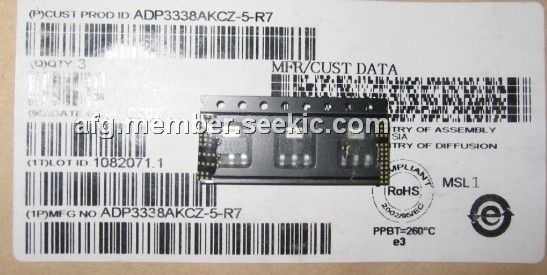

ADP3338AKCZ-5-R7

precision low dropout anyCAP voltage regulator, 8.5 V, 1 A, SOT-223

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.38~2.40 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.38~2.40

PartNumber:: ADP3338AKCZ-5-R7

Brand:: Analog Devices - ADI | Pack: SOT | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. vivian's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-25

From Other Seller

Part Number:ADP3338AKCZ-5-R7
US $2.38 - 2.40
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
ALC662

US $0.80 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The ADP3338AKCZ-5-R7 is a precision low dropout anyCAP voltage regulator. The ADP3338AKCZ-5-R7 operates with an input voltage range of 2.7 V to 8 V and delivers a load current up to 1 A. The ADP3338AKCZ-5-R7 stands out from the conventional LDOs with a novel architecture and an enhanced process that enables it to offer performance advantages and higher output current than its competition. Its patented design requires only a 1 μF output capacitor for stability. This device is insensitive to output capacitor Equivalent Series Resistance (ESR), and is stable with any good quality capacitor, including ceramic (MLCC) types for space-restricted applications. The ADP3338AKCZ-5-R7 achieves exceptional accuracy of ±0.8% at room temperature and ±1.4% over temperature, line and load variations. The dropout voltage of the ADP3338 is only 190 mV (typical) at 1 A. This device also includes a safety current limit and thermal overload protection. The ADP3338AKCZ-5-R7 has ultralow quiescent current 110 μA (typical) in light load situations.

Parametrics

ADP3338AKCZ-5-R7 absolute maximum ratings: (1)Input Supply Voltage: -0.3 V to +8.5 V; (2)Power Dissipation: Internally Limited; (3)Operating Ambient Temperature Range: -40℃ to +85℃; (4)Operating Junction Temperature Range: -40℃ to +150℃; (5)Storage Temperature Range: -65℃ to +150℃; (6)Lead Temperature Range (Soldering 10 sec): 300℃; (7)Vapor Phase (60 sec): 215℃; (8)Infrared (15 sec): 220℃.

Features

ADP3338AKCZ-5-R7 features: (1)High Accuracy Over Line and Load: 0.8% @ 25℃, 1.4% Over Temperature; (2)Ultralow Dropout Voltage: 190 mV (Typ)@ 1 A; (3)Requires Only CO = 1 for Stability anyCAP = Stable with Any Type of Capacitor (Including MLCC); (4)Current and Thermal Limiting; (5)Low Noise; (6)2.7 V to 8 V Supply Range; (7)–40℃ to +85℃ Ambient Temperature Range; (8)SOT-223 Package.
