Product Summary

The ADIS16365BMLZ is a tri-axis inertial sensor. The ADIS16365BMLZ combines the Analog Devices, Inc., iMEMS and mixed signal processing technology to produce a highly integrated solution that provides calibrated, digital inertial sensing. An SPI interface and simple output register structure allow for easy access to data and configuration controls. The SPI port provides access to the following embedded sensors: X-, Y-, and Z-axis angular rates; X-, Y-, and Z-axis linear accelera-tion; internal temperature; power supply; and auxiliary analog input. The ADIS16365BMLZ is precision-aligned across axes and are calibrated for offset and sensitivity over the industrial temperature range of -40 to +85°C. An embedded controller dynamically compensates for all major influences on the sensors, thus maintaining highly accurate sensor outputs without further testing, circuitry, or user intervention.

Parametrics

ADIS16365BMLZ absolute maximum ratings: (1)VCC to GND: -0.3 V to +6.0 V; (2)Digital Input Voltage to GND: -0.3 V to +5.3 V; (3)Digital Output Voltage to GND: -0.3 V to VCC + 0.3 V; (4)Analog Input to GND: -0.3 V to +3.6 V; (5)Operating Temperature Range: -40℃ to +85℃; (6)Storage Temperature Range: -65℃ to +125℃.

Features

ADIS16365BMLZ features: (1)350 Hz bandwidth; (2)Factory calibrated sensitivity, bias, and alignment Calibration temperature range: -40°C to +85°C; (3)External clock input for sample synchronization; (4)Digitally controlled bias calibration; (5)Digitally controlled sample rate; (6)Digitally controlled filtering; (7)Programmable condition monitoring; (8)Auxiliary digital input/output; (9)Digitally activated self-test; (10)Programmable power management; (11)Embedded temperature sensor; (12)SPI-compatible serial interface; (13)Auxiliary 12-bit ADC input and DAC output; (14)Single-supply operation: 4.75 V to 5.25 V; (15)2000 g shock survivability; (16)Operating temperature range: -40°C to +105°C.


Diagrams

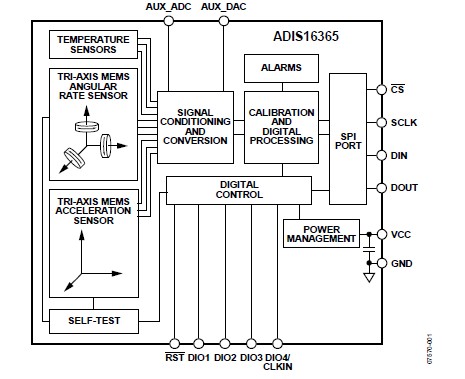

ADIS16365BMLZ pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ADIS16365BMLZ
ADIS16365BMLZ


MODULE GYRO/ACCELEROMETER 24ML

Data Sheet

0-1: $324.31
1-10: $320.31
