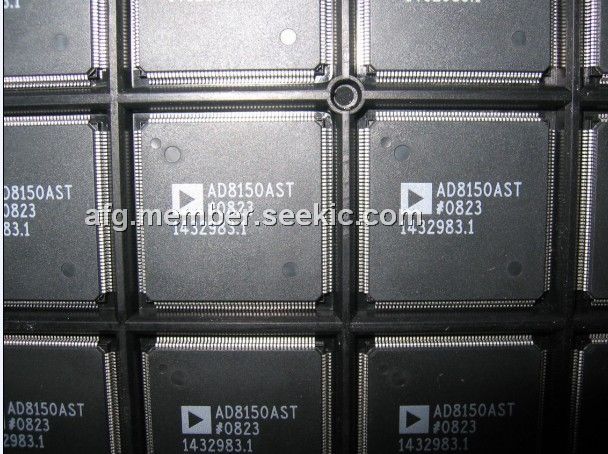

Product Summary

The AD8150ASTZ is a digital crosspoint switch, offering a large switch array (33 × 17) on very little power, typically less than 1.5 W. Additionally, it operates at data rates in excess of 1.5 Gbps per port, making it suitable for HDTV applications. Further, the pricing of the AD8150ASTZ makes it affordable enough to be used for SD applications as well. The AD8150ASTZ is also useful for OC-24 optical network switching. Applications are HD and SD digital video, fiber optic network switching.

Parametrics

AD8150ASTZ absolute maximum ratings: (1)Supply Voltage VDD – VEE: 10.5 V; (2)Internal Power Dissipation AD8150 184-Lead Plastic LQFP (ST): 4.2 W; (3)Storage Temperature Range: –65°C to +125°C; (4)Lead Temperature Range (Soldering 10 sec): 300°C; (5)IOUT: 16mA.

Features

AD8150ASTZ features: (1)Low Cost; (2)Fully Differential, Nonblocking Array; (3)>1.5 Gbps per Port NRZ Data Rate; (4)Wide Power Supply Range: +5 V, +3.3 V, –3.3 V, –5 V; (5)Low Power; (6)PECL and ECL Compatible; (7)CMOS/TTL-Level Control Inputs: 3 V to 5 V; (8)Low Jitter: <50 ps p-p; (9)No Heat Sinks Required; (10)Drives a Backplane Directly; (11)Programmable Output Current; (12)Individual Output Disable for Busing and Building; (13)Larger Arrays; (14)Double Row Latch; (15)Buffered Inputs; (16)Available in 184-Lead LQFP.

Diagrams

AD8150ASTZ pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD8150ASTZ
AD8150ASTZ

IC CROSSPOINT SWIT 33X17 184LQFP
Data Sheet
0-1: $81.70
1-10: $77.75
10-100: $75.12
