Product Summary

The AD8034ARZ FastFET amplifier is voltage feedback amplifier with FET inputs, offering ease of use and excellent performance. The AD8034ARZ is a dual amplifier. The AD8034ARZ FastFET op amps in ADIs proprietary XFCB process offer significant performance improvements over other low cost FET amps, such as low noise (11 nV/√Hz and 0.6 fA/√Hz) and high speed (80 MHz bandwidth and 80 V/μs slew rate). The AD8034ARZ amplifiers only draw 3.3 mA/amplifier of quiescent current while having the capability of delivering up to 40 mA of load current. Applications are (1)instrumentation; (2)filters; (3)level shifting; (4)buffering.

Parametrics

AD8034ARZ absolute maximum ratings: (1)Supply Voltage: 26.4 V; (2)Common-Mode Input Voltage: 26.4 V; (3)Differential Input Voltage: 1.4 V; (4)Storage Temperature: –65°C to +125°C; (5)Operating Temperature Range: –40°C to +85°C; (6)Lead Temperature Range (Soldering 10 sec): 300°C.

Features

AD8034ARZ features: (1)FET Input Amplifier 1 pA Typical Input Bias Current; (2)Very Low Cost; (3)High Speed: 80 MHz, –3 dB Bandwidth (G = +1), 80 V/s Slew Rate (G = +2); (4)Low Noise: 11 nV/√Hz (f = 100 kHz), 0.6 fA/√Hz (f = 100 kHz); (5)Wide Supply Voltage Range: 5 V to 24 V; (6)Low Offset Voltage, 1 mV Typical; (7)Single-Supply and Rail-to-Rail Output; (8)High Common-Mode Rejection Ratio –100 dB; (9)Low Power: 3.3 mA/Amplifier Typical Supply Current; (10)No Phase Reversal; (11)Small Packaging: SOIC-8, SOT-23-8, and SC70.

Diagrams

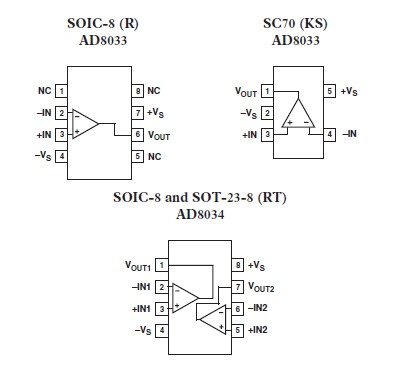

AD8034ARZ pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD8034ARZ
AD8034ARZ

IC OPAMP VF R-R DUAL LN LP 8SOIC
Data Sheet
0-1: $2.48
1-10: $2.21
10-100: $1.82
100-250: $1.64
250-500: $1.47
500-1000: $1.24
1000-2500: $1.18
AD8034ARZ-REEL
AD8034ARZ-REEL

IC OPAMP VF R-R DUAL LN LP 8SOIC
Data Sheet
0-2500: $1.18
AD8034ARZ-REEL7
AD8034ARZ-REEL7

IC OPAMP VF R-R DUAL LN LP 8SOIC
Data Sheet
0-1000: $1.24
