Product Summary

The ADL5375-05ACPZ-R7 is a broadband quadrature modulator designed for operation from 400 MHz to 6 GHz. Its excellent phase accuracy and amplitude balance enable high performance intermediate frequency or direct radio frequency modulation for communication systems. The ADL5375-05ACPZ-R7 features a broad baseband bandwidth, along with an output gain flatness that varies no more than 1 dB from 450 MHz to 3.8 GHz. The applications of the ADL5375-05ACPZ-R7 include Cellular communication systems, GSM/EDGE, CDMA2000, W-CDMA, TD-SCDMA WiMAX/broadband wireless access systems Satellite modems.

Parametrics

ADL5375-05ACPZ-R7 absolute maximum ratings: (1)Supply Voltage, VPOS: 5.5 V; (2)IBBP, IBBN, QBBP, QBBN: 0 V to 2 V; (3)LOIP and LOIN: 13 dBm; (4)Internal Power Dissipation: 1500mW; (5)θJA (Exposed Paddle Soldered Down)1: 54℃/W; (6)Maximum Junction Temperature: 150℃; (7)Operating Temperature Range: -40°C to +85℃; (8)Storage Temperature Range: -65°C to +150℃.

Features

ADL5375-05ACPZ-R7 features: (1)Output frequency range: 400 MHz to 6 GHz 1 dB output compression: ≥9.4 dBm from 450 MHz to 4 GHz; (2)Output return loss ≤ 14 dB from 450 MHz to 5.5 GHz; (3)Noise floor: -160 dBm/Hz @ 900 MHz; (4)Sideband suppression: ＜-50 dBc @ 900 MHz; (5)Carrier feedthrough: ＜-46 dBm @ 900 MHz; (6)Baseband input bias level: ADL5375-05: 500 mV; ADL5375-15: 1500mV; (7)Single supply: 4.75 V to 5.25 V; (8)24-lead LFCSP_VQ package.

Diagrams

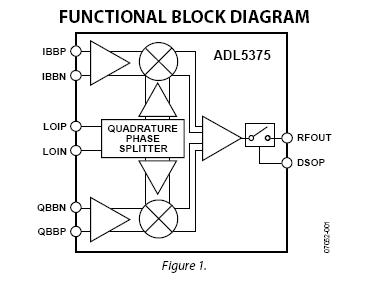

ADL5375-05ACPZ-R7 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ADL5375-05ACPZ-R7
ADL5375-05ACPZ-R7

IC MOD QUAD 400MHZ-6GHZ 24LFCSP
Data Sheet
0-1: $6.18
1-10: $5.61
10-25: $5.20
25-100: $4.76
100-250: $4.35
250-500: $4.06
