AD7856ARZ-REEL

Product Summary

The AD7856ARZ-REEL is a high speed, low power, 14-bit ADC that operates from a single 5 V power supply. The ADC powers up with a set of default conditions at which time it can be operated as a read only ADC. The ADC contains self-calibration and system calibration options to ensure accurate operation over time and temperature and it has a number of power-down options for low power applications. The AD7856ARZ-REEL is capable of 285 kHz throughput rate. The input track-and-hold acquires a signal in 500 ns and features a pseudodifferential sampling scheme. The AD7856ARZ-REEL voltage range is 0 to VREF with straight binary output coding. Input signal range is to the supply and the part is capable of converting full power signals to 10 MHz. Applications are (1)Battery-Powered Systems (Personal Digital Assistants, Medical Instruments, Mobile Communications); (2)Pen Computers; (3)Instrumentation and Control Systems; (4)High Speed Modems.

Parametrics

AD7856ARZ-REEL absolute maximum ratings: (1)AVDD to AGND: –0.3 V to +7 V; (2)DVDD to DGND: –0.3 V to +7 V; (3)AVDD to DVDD: –0.3 V to +0.3 V; (4)Analog Input Voltage to AGND: –0.3 V to AVDD + 0.3 V; (5)Digital Input Voltage to DGND: –0.3 V to DVDD + 0.3 V; (6)Digital Output Voltage to DGND: –0.3 V to DVDD + 0.3 V; (7)REFIN/REFOUT to AGND: –0.3 V to AVDD + 0.3 V; (8)Input Current to Any Pin Except Supplies: ±10 mA; (9)Operating Temperature Range Commercial: A Version –40°C to +105°C, K Version 0°C to +105°C; (10)Storage Temperature Range: –65°C to +150°C; (11)Junction Temperature: 150°C; (12)Plastic DIP Package, Power Dissipation: 450 mW; (13)Lead Temperature, (Soldering, 10 secs): 260°C; (14)SOIC, SSOP Package, Power Dissipation: 450 mW; (15)Lead Temperature, Soldering: Vapor Phase (60 secs)215°C, Infrared (15 secs)220°C; (16)ESD: >1 kV.

Features

AD7856ARZ-REEL features: (1)Single 5V Supply; (2)285 kSPS Throughput Rate; (3)Self- and System Calibration with Autocalibration on Power-Up; (4)Eight Single-Ended or Four Pseudo-Differential Inputs; (5)Low Power: 60 mW Typ; (6)Automatic Power-Down After Conversion (2.5mW Typ); (7)Flexible Serial Interface: 8051/SPI/QSPI/mP Compatible; (8)24-Lead DIP, SOIC and SSOP Packages.

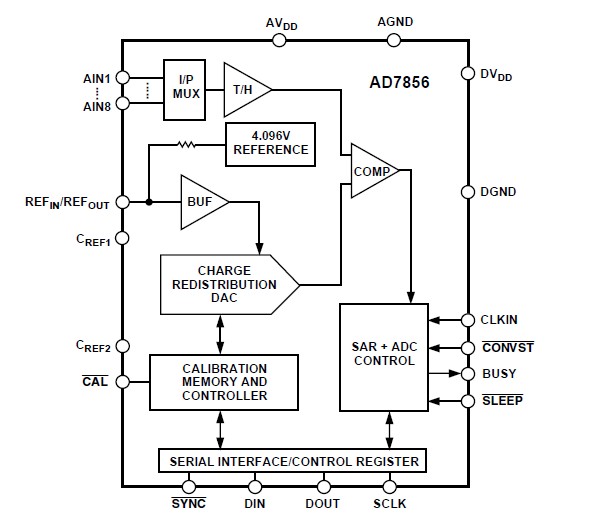

Diagrams
