Product Summary
The AD5601BKSZ is a single, 8-/10-/12-bit, buffered voltage output DAC that operate from a single 2.7 V to 5.5 V supply, consuming typically 75 μA at 5 V. The AD5601BKSZ come in tiny LFCSP and SC70 packages. Their on-chip precision output amplifier allows rail-to-rail output swing to be achieved. The AD5601BKSZ utilizes a versatile 3-wire serial interface that operates at clock rates up to 30 MHz and is compatible with SPI, QSPI, MICROWIRE, and DSP interface standards. The reference for the AD5601BKSZ is derived from the power supply inputs and, therefore, gives the widest dynamic output range. The parts incorporate a power-on reset circuit, which ensures that the DAC output powers up to 0 V and remains there until a valid write to the device takes place.
Parametrics
AD5601BKSZ absolute maximum ratings: (1)VDD to GND: -0.3 V to +7.0 V; (2)Digital Input Voltage to GND: -0.3 V to VDD + 0.3 V; (3)VOUT to GND: -0.3 V to VDD + 0.3 V; (4)Operating Temperature Range Industrial (A/B Grades): -40℃ to +125℃; (5)Storage Temperature Range: -65℃ to +160℃; (6)Maximum Junction Temperature: 150℃; (7)Lead Temperature, Soldering Vapor Phase (60 sec): 215℃, Infrared (15 sec): 220℃; (8)ESD (Human Body Model): 2.0 kV.
Features
AD5601BKSZ features: (1)6-lead SC70 and LFCSP packages; (2)Micropower operation: 100 μA maximum at 5 V; (3)Power-down typically to 0.2 μA at 3 V; (4)2.7 V to 5.5 V power supply; (5)Guaranteed monotonic by design; (6)Power-on reset to 0 V with brownout detection; (7)3 power-down functions; (8)Low power serial interface with Schmitt-triggered inputs; (9)On-chip output buffer amplifier, rail-to-rail operation; (10)SYNC interrupt facility.

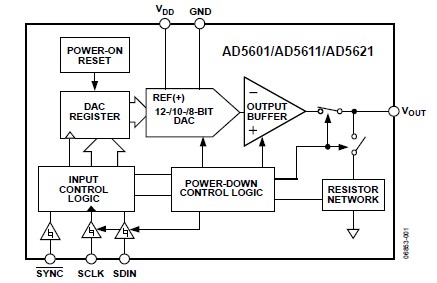

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

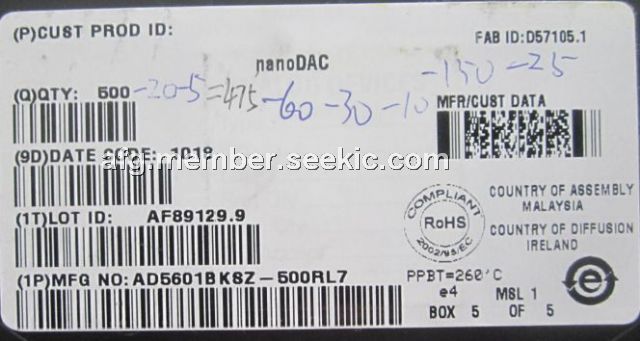

 AD5601BKSZ-500RL7 |
|
IC DAC 8BIT BUFF V-OUT SC70-6 |
Data Sheet |
|
|
||||||||||||||||||
|
AD5601BKSZ-REEL7 |
|
IC DAC 8BIT BUFF V-OUT SC70-6 |
Data Sheet |
|
|
||||||||||||||||||
